Reflow soldering is a widely used method for soldering surface mount components onto printed circuit boards (PCBs). It involves the use of solder paste, which is a mixture of tiny solder particles suspended in a flux medium. The solder paste is applied to the PCB pads, and then the components are placed on top of the paste. During the reflow process, the solder paste is heated to a specific temperature, causing it to melt and form solder joints, connecting the components to the PCB.
The reflow soldering process typically involves the following steps:
- Solder paste application: Solder paste is applied to the PCB pads using a stencil or a screen printing process. The stencil has openings that correspond to the pad locations on the PCB. The solder paste is spread over the stencil, and a squeegee is used to push the paste through the openings, depositing it onto the pads.
- Component placement: Surface mount components are then placed onto the PCB, aligning the component leads or solder balls with the corresponding solder paste deposits. This can be done manually or using automated pick-and-place machines.
- Preheating: The PCB is preheated to remove any moisture and ensure that the components are at a suitable temperature for soldering. Preheating helps prevent thermal shock to the components when they go through the rapid temperature change during reflow.

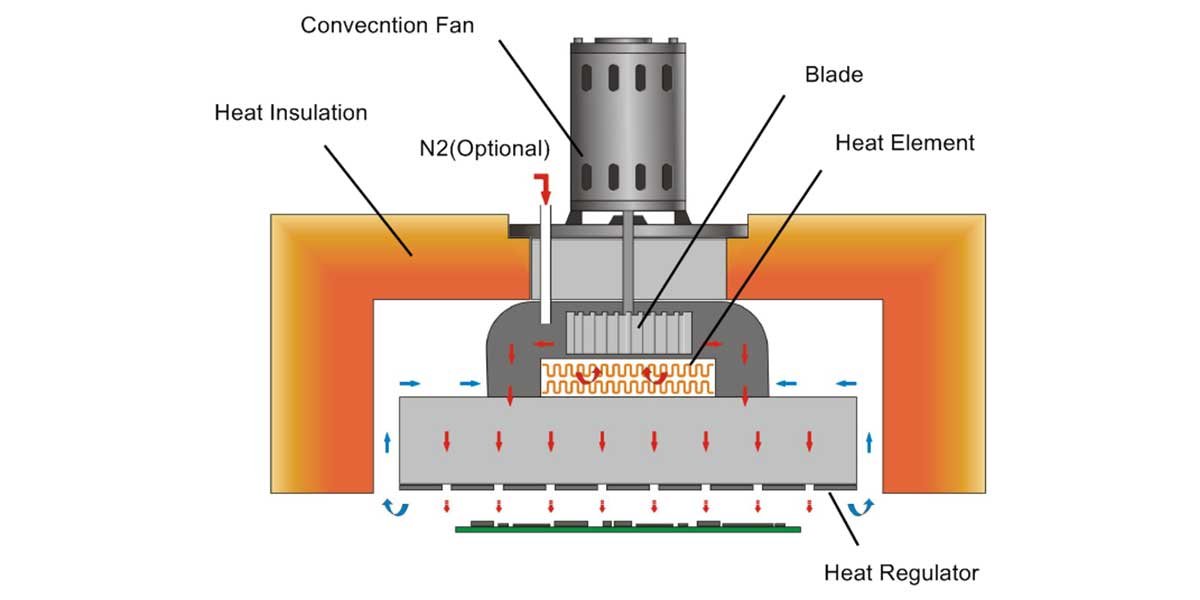

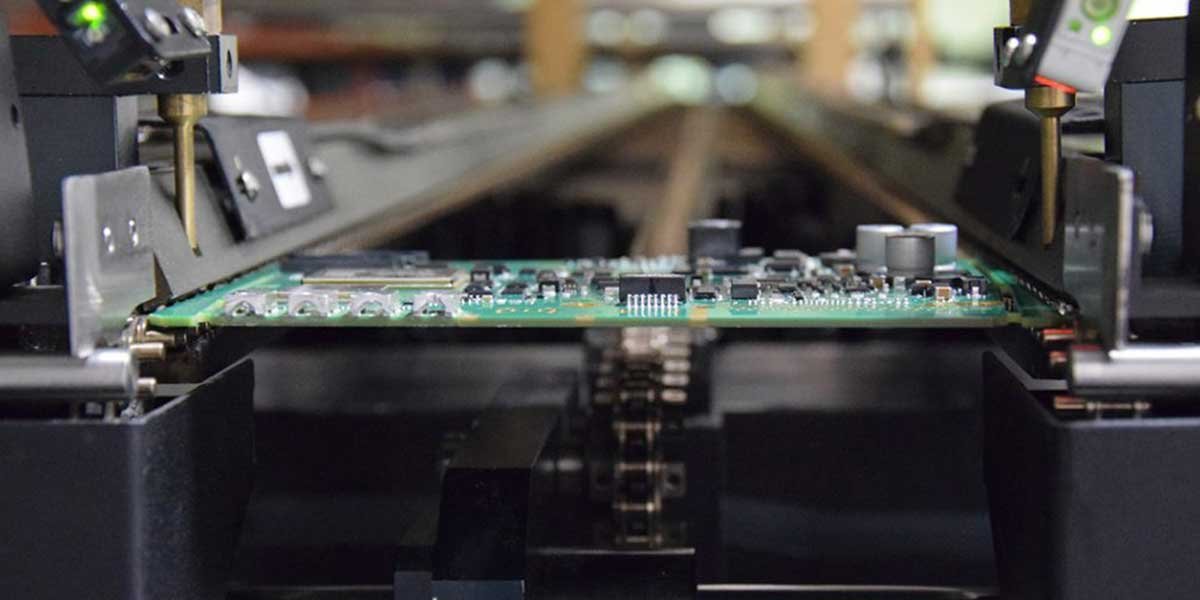

- Reflow: The preheated PCB is transferred to a reflow oven or a reflow soldering machine. The reflow oven has different heating zones, each with controlled temperature profiles. The PCB is passed through these zones, subjecting it to a carefully controlled heating and cooling process. The temperature profile typically consists of ramp-up, soak, and ramp-down phases.
-Ramp-up: The temperature is gradually increased to reach the designated reflow temperature. This ensures that the solder paste reaches its melting point and forms a liquid phase.
– Soak: The temperature is maintained at the reflow temperature for a specific duration. This allows the solder to fully melt, form intermetallic bonds, and create reliable connections.
– Ramp-down: The temperature is gradually reduced, allowing the solder joints to solidify and the PCB to cool down. - Cooling: Once the reflow process is complete, the PCB is cooled down. This can be done within the reflow oven or by using additional cooling systems. Proper cooling helps ensure the stability and integrity of the solder joints.
Reflow soldering offers several advantages, including high solder joint quality, precise control over the soldering process, and the ability to solder many components simultaneously. It is a widely used technique in PCB assembly, especially for surface mount components, due to its efficiency and reliability.
