Introduction In today’s ever-connected world, each electronic device is at risk for electromagnetic interference. Electromagnetic interference denotes an unwanted perturbation to electrical signals, thus degrading the performance and reliability of devices. EMI management in Printed Circuit Board design is highly important to make devices function in conformity with requirements, especially for those industries that require extreme precision, such as medical devices, automotive electronics, and telecommunications.
HighPCB has pushed several steps forward into advanced PCB design solutions that not only reduce EMI issues but also elevate product performance. With an integrated approach of innovative design, selection of the right components, and quality fabrication techniques, HighPCB always develops products with maximum EMI immunity.

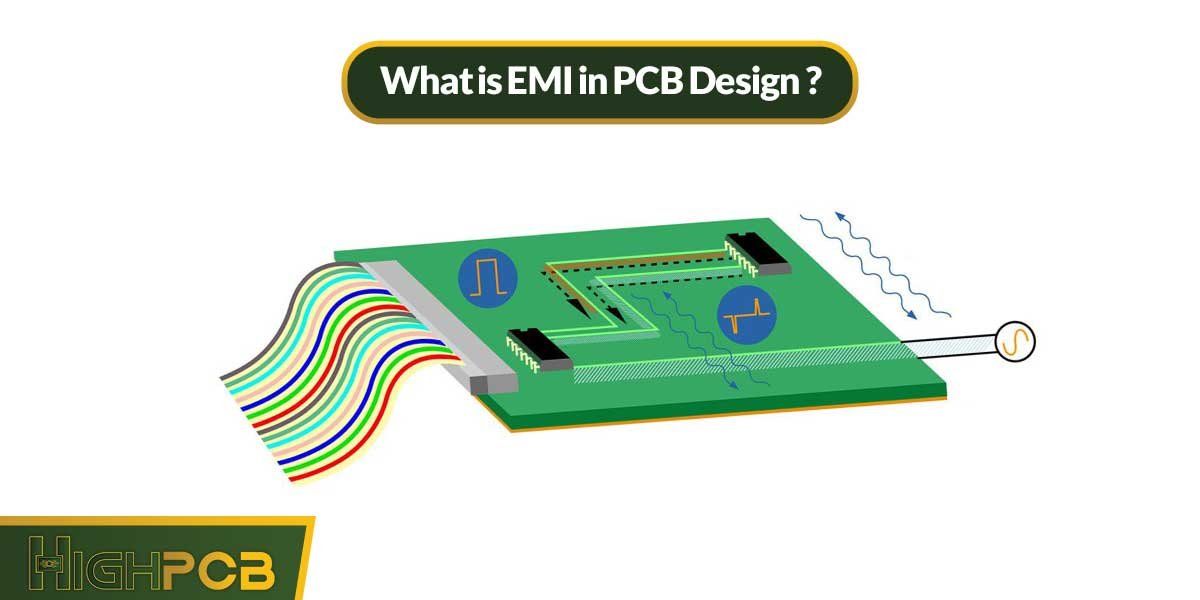

What is EMI in PCB Design?
EMI stands for Electromagnetic Interference. It is the interference of external electromagnetic waves which affects the usual working operation of electrical circuits. It may be produced from a number of sources:
- Internal sources: EMI can be emitted inside the device by circuits, particularly where high-frequency operations occur.
- External sources: Interference from other appliances or equipment, like cell phones and industrial devices, can permeate the PCB.
In PCBs, EMI is not only a matter of managing external disturbances but also about controlling the interference generated within the board by its components and circuits. If left unchecked, EMI can lead to disruptions in functionality and efficiency that can even lead to device failure.

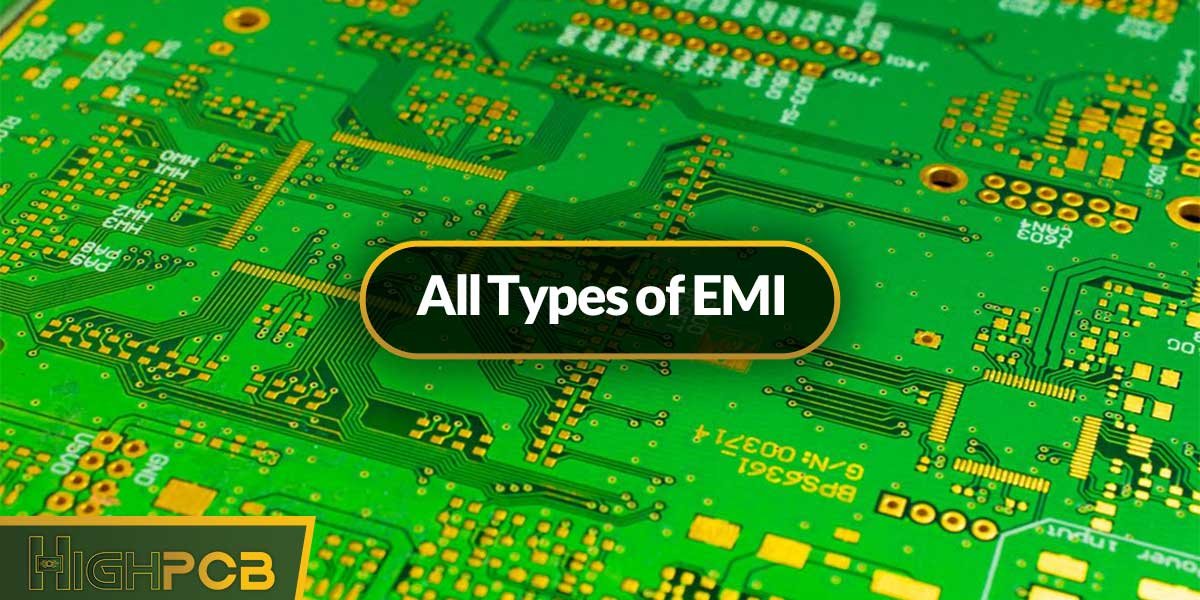

Types of EMI There are two basic types of EMI:
- Conducted EMI: It normally occurs when the unwanted signal travels in conductors such as wires or traces in a PCB.
- Radiated EMI: When there is a possibility of a threat to the electromagnetic waves emitted from components or traces, they may travel through the air and interfere with other parts in the same PCB or other nearby devices.
- Crosstalk: This refers to a type of EMI in which signals in adjacent traces interfere with one another, especially in high-density or high-speed PCBs.
Knowing these types of EMI will be significant in devising a design strategy for preventing unwanted interference.
Common Causes of EMI in PCB Design
Common Causes of EMI in PCB Design Several design choices directly influence the EMI performance of a printed circuit board, including the following:
- Component placement: There are instances of placements of components which increase susceptibility to interference.
- The signal integrity issues all contribute to EMI populations: high-frequency signals, sharp edges, and mismatched impedance.
- Inadequate shielding: Whenever there isn’t proper shielding, then radiated EMI would affect sensitive components.

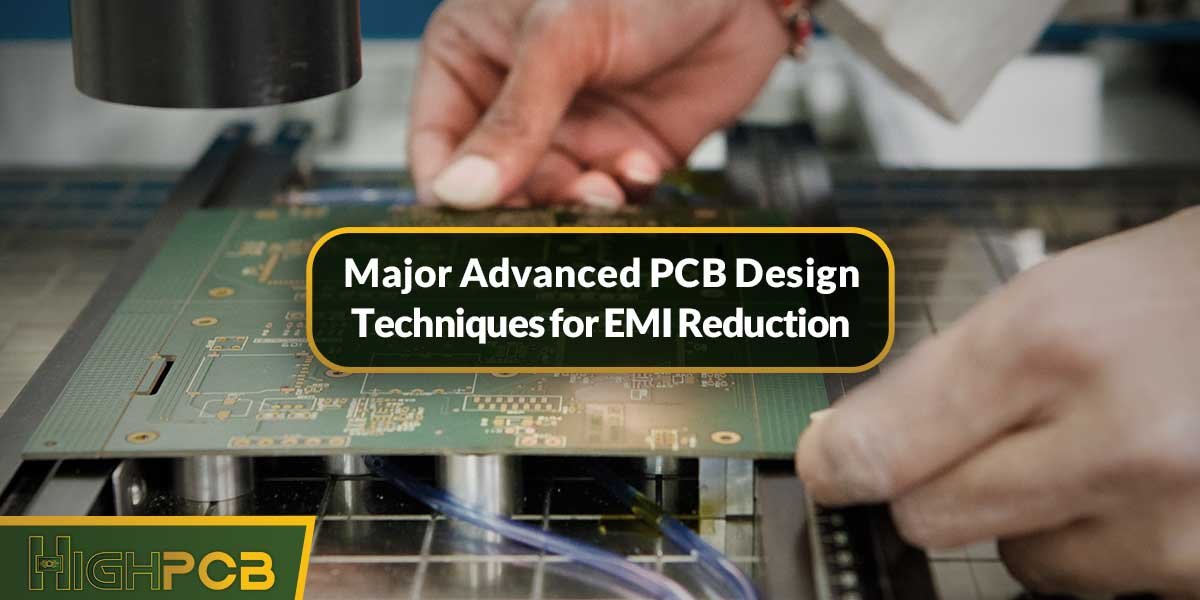

Major Advanced PCB Design Techniques for EMI Reduction
- Optimized Layer Stacking Structure of a PCB, and especially the layer stack-up, are the most important in managing EMI. Advanced PCBs are highly multilayered, comprising signal layers, power, and ground planes. Ground planes will normally serve as reference planes to assist in the dissipation of EMI. For control of EMI, HighPCB employs optimized layer stack-ups so that sensitive signals can be kept isolated. It places the ground plane next to the high-speed signal layers to reduce the distance the interference must travel, hence containing the radiated EMI.
- Ground Plane Strategies A continuous ground plane is critical for EMI management. Not only does it provide a path for the return current, but also provides a low impedance return path for high-frequency signals. In particular:
- Single ground plane: Minimizes the possibility of ground loops-major source of conducted EMI.
- In complex or high-frequency designs, there might be a number of ground planes for further isolation of sections and minimization of EMI impact.
HighPCB designs use dedicated ground planes, and often designs have an isolated ground plane for only the high-frequency parts to reduce the return-path impedance. Further, HighPCB provides split ground planes quite often to keep analog and digital grounds separated from interfering with each other.
- Component Placement and Routing Strategies The components’ place and then route in such a manner that affects EMI. HighPCB implements EMI-robust component placement that keeps high-frequency and sensitive analog components physically far from each other. Some major routing techniques are:
- Differential Pair Routing: Differential pair routing is done in which both signal lines carry the same signal, and each line is equally susceptible to EMI. The interference gets canceled by this technique, as a result of which these signals maintain their integrity.
- Right Angle Trace Avoidance: Right angles create the opportunity for reflections of the signal and in turn, create radiated EMI. HighPCB uses traces at 45 degrees or curved traces for this purpose to a minimum effect.
- Minimizing Trace Lengths: This is done by making the high-frequency traces as short as possible to reduce the potential for radiated EMI.
- Shielding and Enclosure Design For applications that are extremely sensitive, shielding can be an extra layer in the protection against EMI. HighPCB uses a number of physical shielding methods to decrease EMI:
- Faraday Cages: The sensitive circuits will thus have conductive enclosures, which serve to block the incoming EMI.
- Conductive Coatings: Apply EMI-absorbing coating to critical areas of the PCB to trap and dissipate EMI.
- Metal Enclosures: Putting the entire PCB in one conductive housing well reduces the radiated EMI.
Shielding materials range from copper to aluminum and sometimes a special class of conductive polymers. The shielding design also makes sure the board will comply with industry standards such as FCC and CE for electromagnetic emissions.
- Filtering Techniques HighPCB uses low-pass filters and ferrite beads for EMI control by attenuation of high-frequency signals. Key aspects include the following:
- Capacitive Filtering: Capacitors are placed as close as possible to the high-frequency component to shunt the EMI to ground.
- Ferrite Beads: These devices are designed to attenuate high-frequency signals and are thus very handy for decoupling power and ground lines.
- Differential Mode Filters: For the signals transmitted across differential pairs, differential mode filters maintain signal integrity by excluding common-mode noise.
Filtering is especially effective in the case of conducted EMI; such a measure will make sure that either power integrity or signal quality has not been compromised.

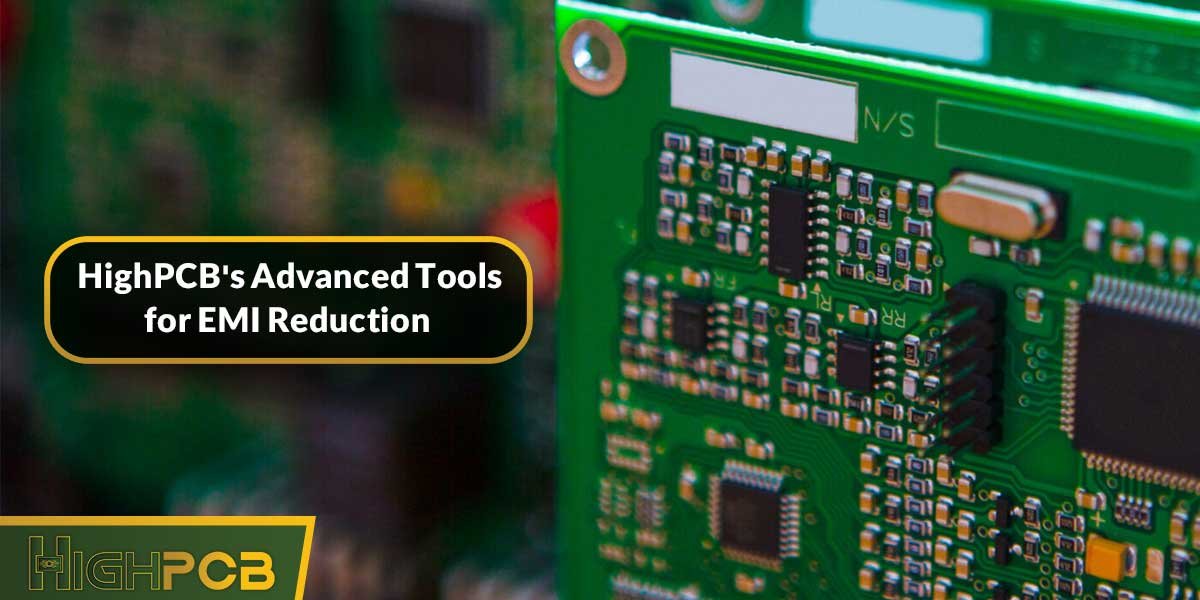

HighPCB’s Advanced Tools for EMI Reductio
HighPCB’s Advanced Tools for EMI Reduction Reducing EMI is not only a design issue; it also refers to using the right tools and techniques necessary in testing and verification concerning EMI resilience. HighPCB integrates advanced tools and test methods which become necessary due to high demands in today’s high-performance applications.
Simulation Software Utilizing electromagnetic simulation software, HighPCB is able to predict and mitigate EMI issues prior to physical prototyping. By emulating the EMI behavior, the design team will be able to locate hotspots and perform component layout, layer stack-up, and routing strategies accordingly.
Testing and Compliance HighPCB ensures that all boards will meet the desired standard when EMI and EMC testing is conducted in their labs. This includes Radiated Emission Testing to ensure EMI is not emanating from the PCB, Conducted Emission Testing to ensure EMI levels in power and signal lines are within limits. In any case, these tests ensure that board performance is within the limits of industrial standards such as FCC, CE, and CISPR. Fully tested by HighPCB with a passing grade of these rigorous requirements, its EMI-optimized boards now can respond to the global market requirement.

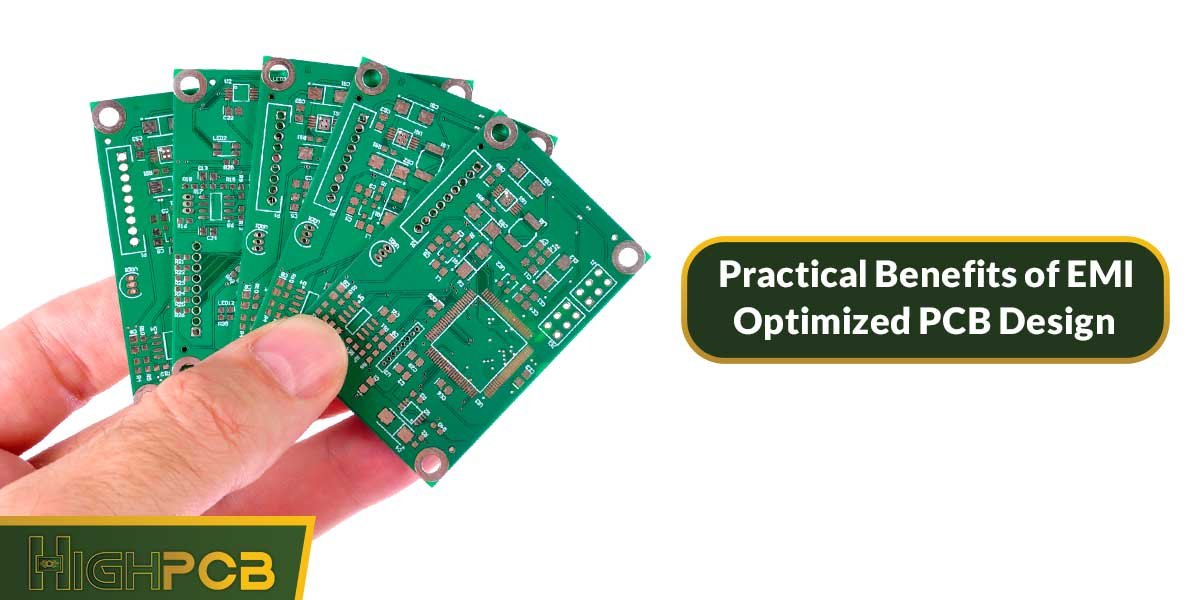

Practical Benefits of EMI-Optimized PCB Design
Practical Benefits of EMI-Optimized PCB Design A well-designed, EMI-resistant PCB yields numerous benefits, including the following:
- Improved Reliability: Reduced EMI means fewer functional disruptions, a factor of utmost importance in mission-critical applications involving medical devices and automotive electronics.
- Compliance with Regulatory Standards: With an EMI-optimized design, product regulatory standards are achieved as pre-requisites for legal distribution in many regions.
- Improved User Experience: A device featuring low EMI offers better performance in which users are better off from its use, facing fewer interferences and interruptions from other electronic devices in the neighborhood.
In highly critical applications, like telecommunication, aerospace, and defense, the reliability and stability provided by EMI-optimized designs may make all the difference.
Conclusion Applying advanced EMI-reduction techniques to the PCB design is not an option but an obligation for any device used in an environment where reliability and robust performance are at stake. From optimized layer stacking to dedicated ground planes, EMI-safe component placement, shielding, and filtering, HighPCB manufacturers make certain that every board is engineered to maximum resilience against EMI.
By focusing on high standards for quality and using advanced technologies, HighPCB is in an excellent position to cater effectively to EMI management needs in a wide variety of electronic applications with reliable, compliant, and high-performance PCBs.
