Class 3 electronic assemblies in IPC-610 have the most stringent requirements due to their application in areas where high reliability and performance are critical, such as aerospace, medical devices, and military equipment. The specific requirements for Class 3 electronic assemblies include:

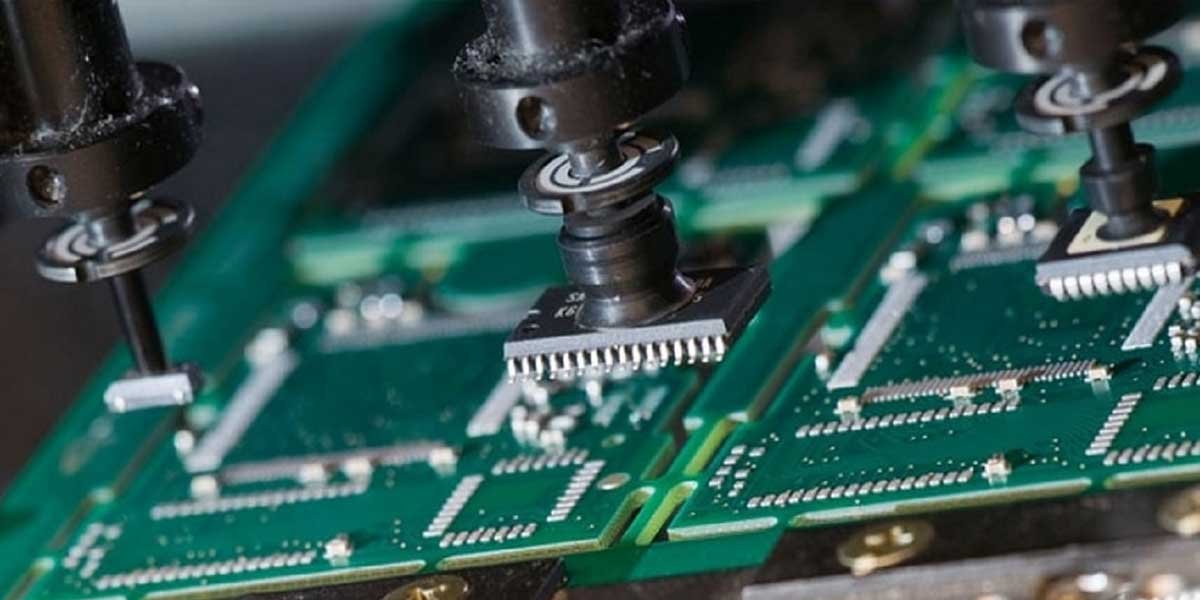

1. Component Placement
- Components must be accurately placed and aligned according to the design specifications.
- Appropriate spacing should be maintained between components to prevent electrical and thermal interference.
- Lead and component coplanarity must be within specified limits.

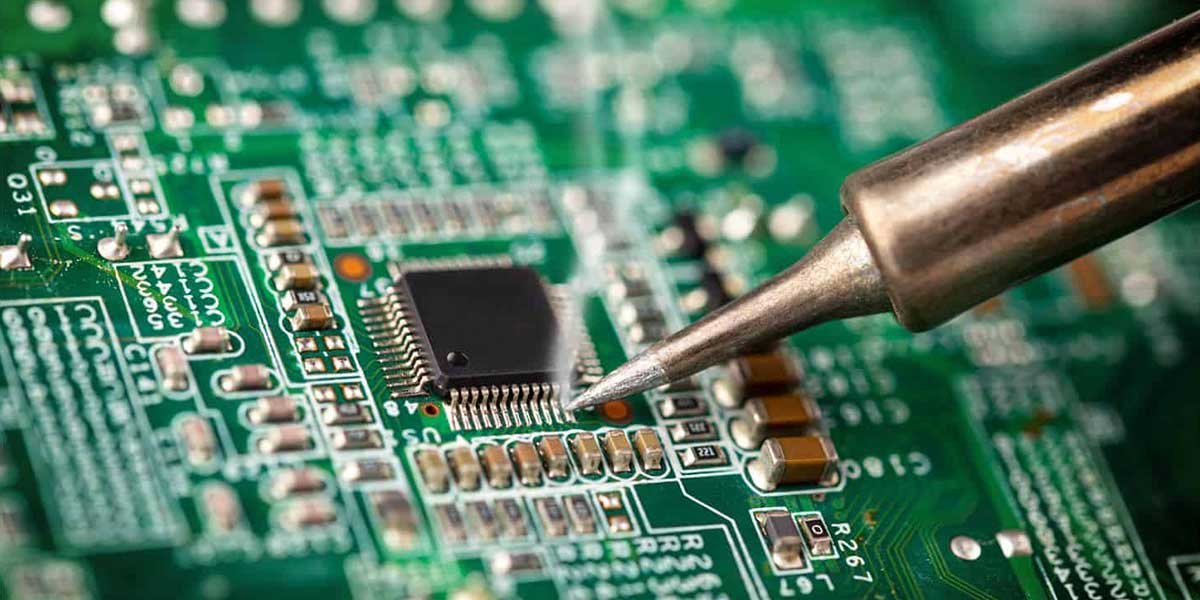

2. Soldering
- Solder joints must exhibit excellent workmanship and meet specific criteria for wetting, fillet shape, and overall appearance.
- Soldering must be free from defects such as voids, bridging, and excessive solder.

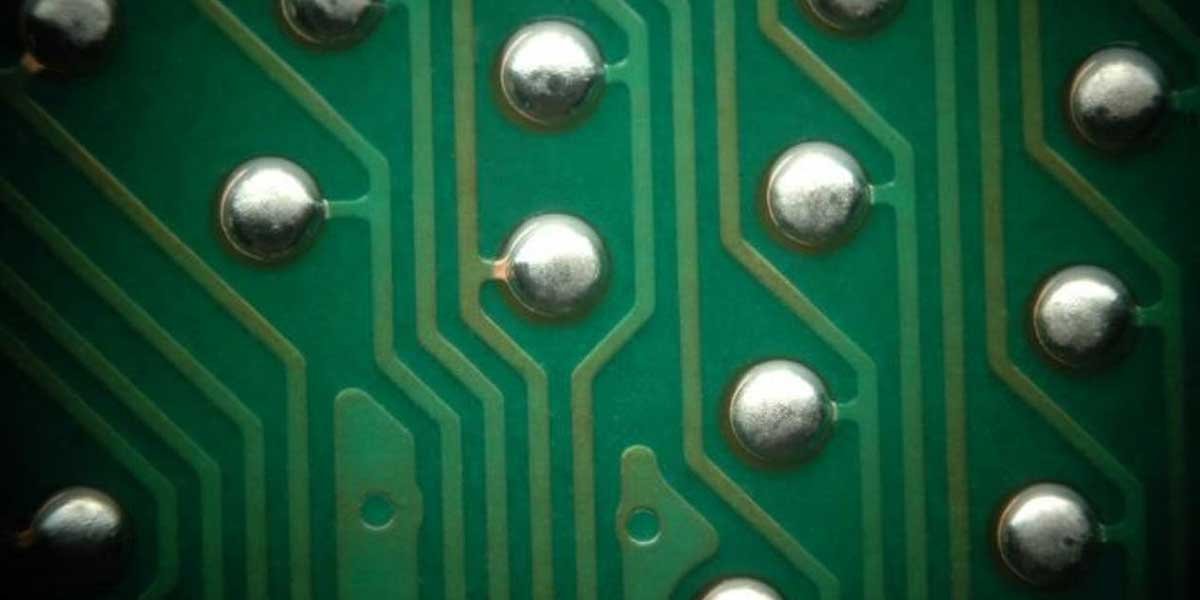

3. Soldering Acceptance Criteria
- Acceptable solder joint conditions must meet the requirements for minimum wetting, fillet height, and fillet length as specified in the standard.
- Solder joint acceptability is determined by visual inspection, and joint integrity and reliability are crucial.

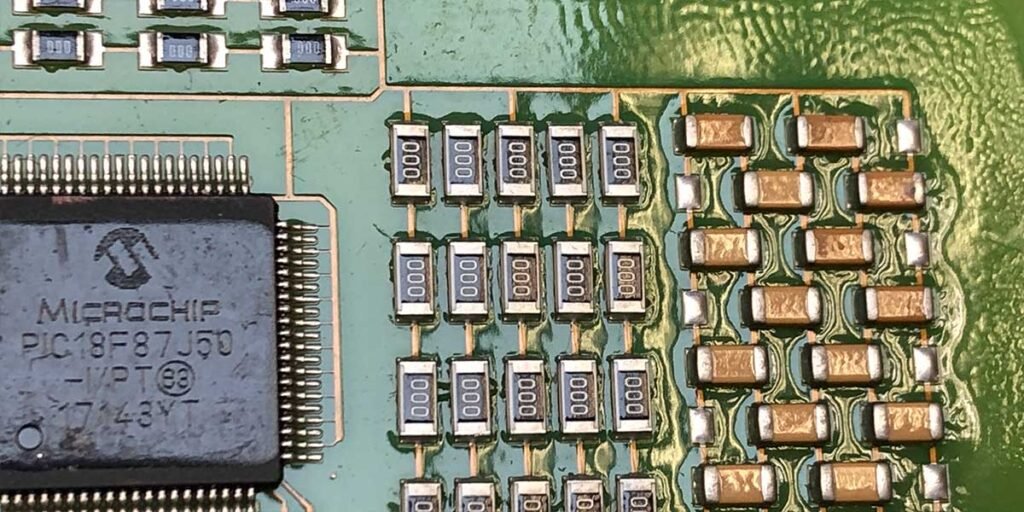

4. Conformal Coating
- If conformal coating is applied, it must be uniform, free from bubbles, pinholes, and other defects that could impact the reliability of the assembly.
- The coating thickness should comply with the specified requirements.

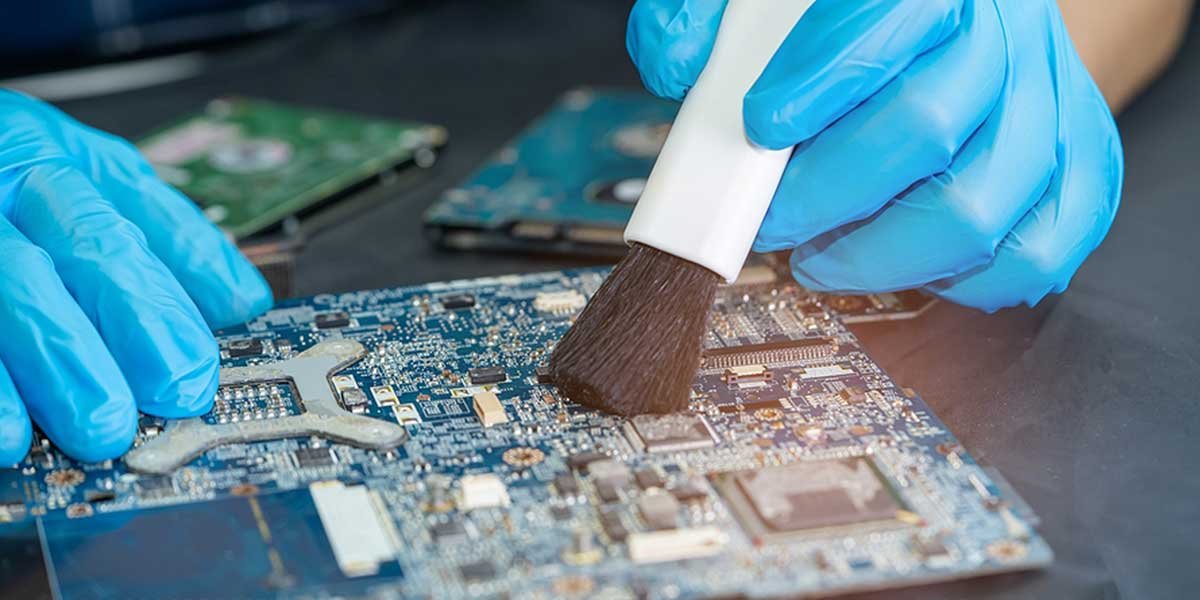

5. Cleanliness
- Class 3 assemblies have strict cleanliness requirements to minimize the presence of contaminants that could affect performance and reliability.
- The standard defines specific limits for residue, ionic contamination, and other potential contaminants.

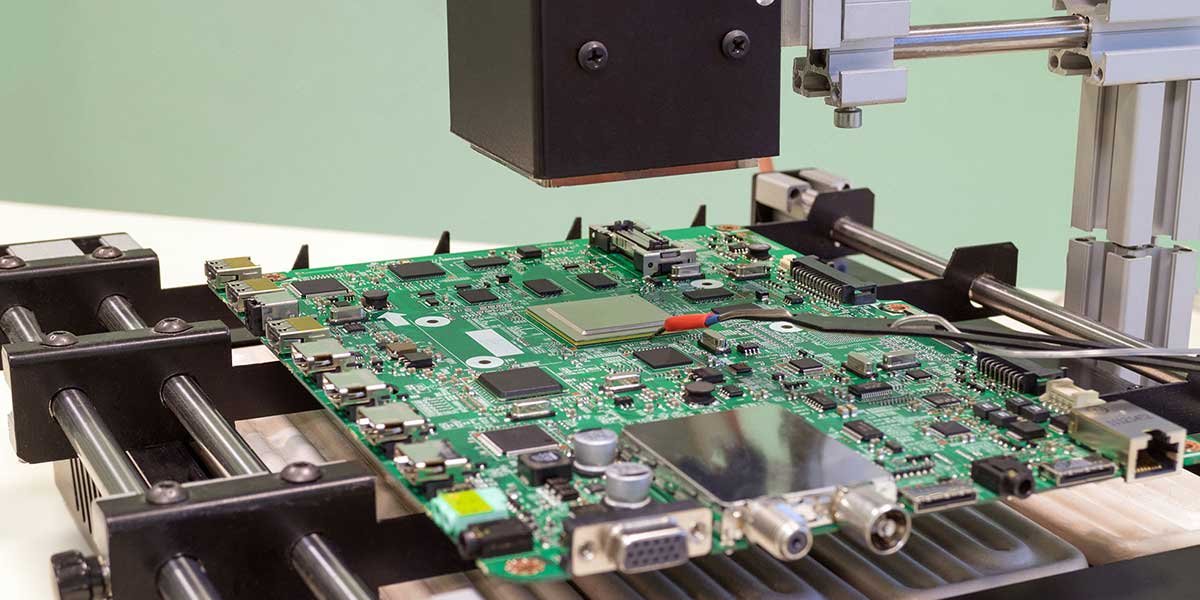

6. Rework and Repair
- Rework and repair of Class 3 assemblies must follow strict guidelines and be performed by trained personnel to maintain the highest level of quality and reliability.
It’s important to note that the requirements for Class 3 assemblies are more stringent compared to Class 1 and Class 2 assemblies. Manufacturers and assemblers must carefully adhere to these requirements to ensure the highest level of quality, reliability, and performance for electronic assemblies in critical applications.
For more detailed and comprehensive information on the specific requirements for Class 3 electronic assemblies, it is recommended to refer to the IPC-A-610 standard document, which provides detailed criteria, illustrations, and reference images to aid in the assessment and acceptance of Class 3 assemblies.
